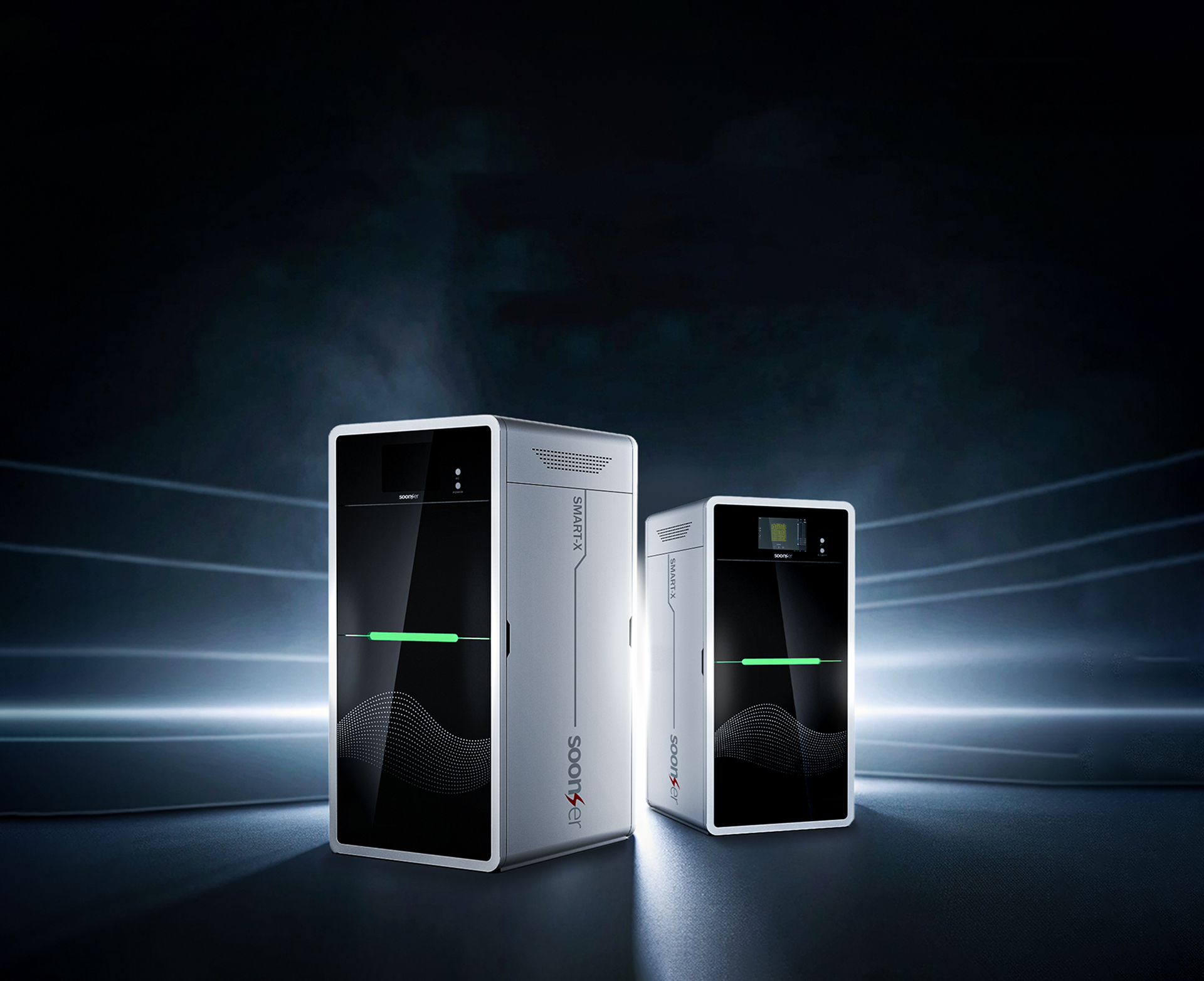

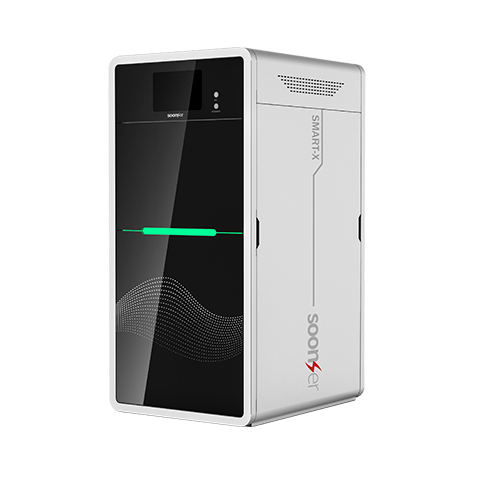

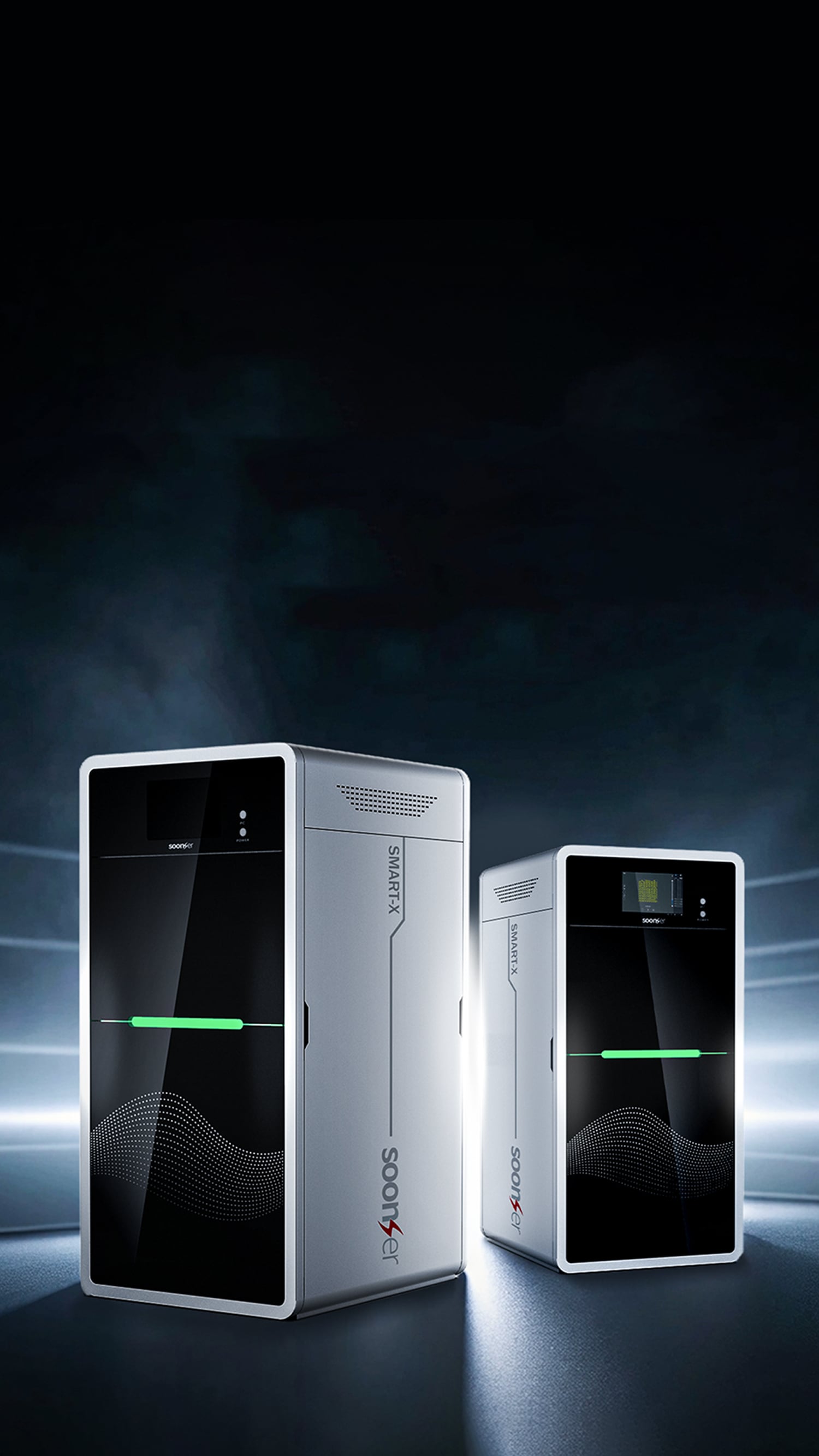

SOONSER SMART SERIES SLA 3D PRINTERS
Designed for businesses with limited space and budget, the Smart SLA delivers professional-grade resin 3D printing in a smaller, cost-effective package.
-
Compact -
Affordable -
Precision-Perfected
-
Compact
-
Affordable
-
Precision-Perfected
Series Overview
The SoonSer Smart SLA delivers professional-quality 3D printing in a compact, budget-friendly package. It enables businesses with space and budget constraints to access high-performance 3D printing, allowing for faster prototyping and cost-effective production. The Smart SLA is a reliable solution for industries such as automotive, electronics and education, where precision and affordability are key.
-
High Stability

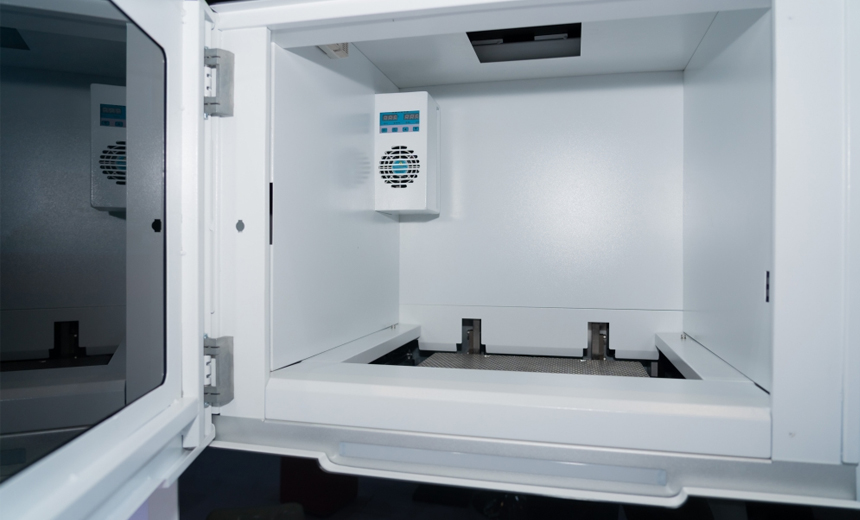

The printer features an integrated modularized design, a triaxial marble base board, an all-in-one frame structure and excellent optical instruments for enhanced stability and precision.
-
High Accuracy and Fine Details

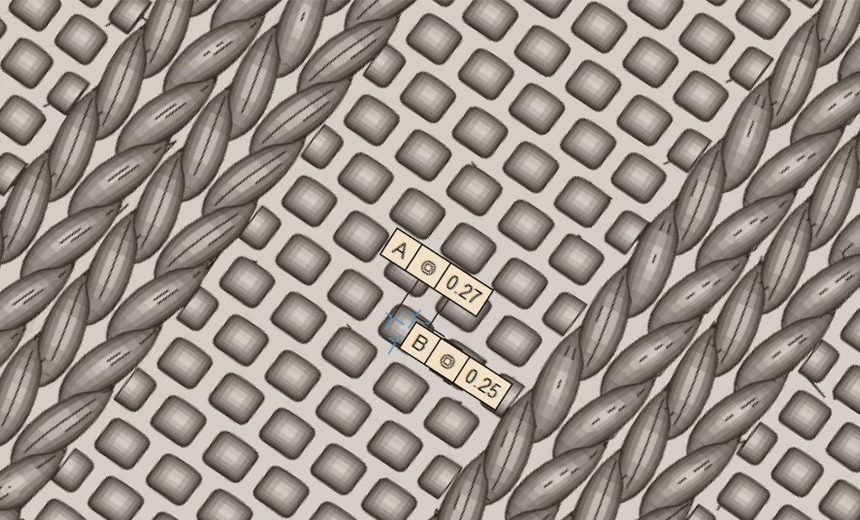

With a print accuracy of 50μm and case study resolution (vertical: 0.25mm; horizontal: 0.27mm), the printer delivers exceptional detail and precision.
-
Intelligent and Convenient

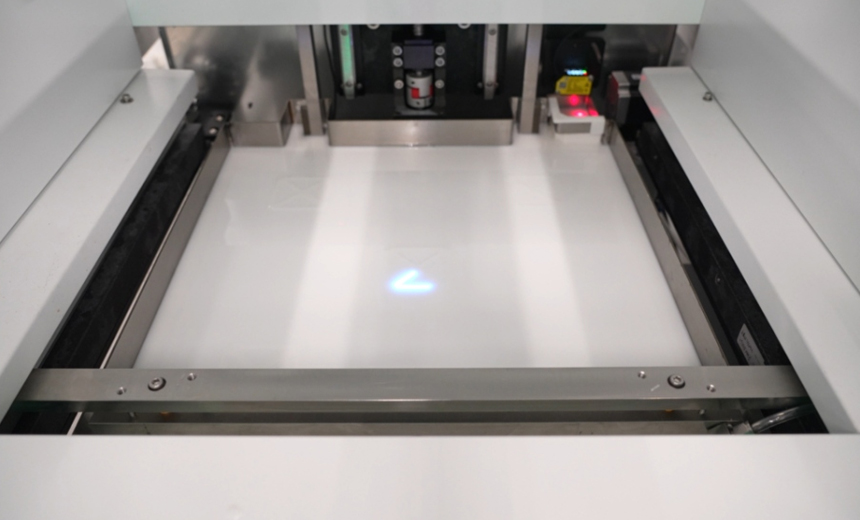

The printer includes an easy-to-install build plate, a replaceable resin tank, remote monitoring, and real-time laser detection for a seamless user experience.
-

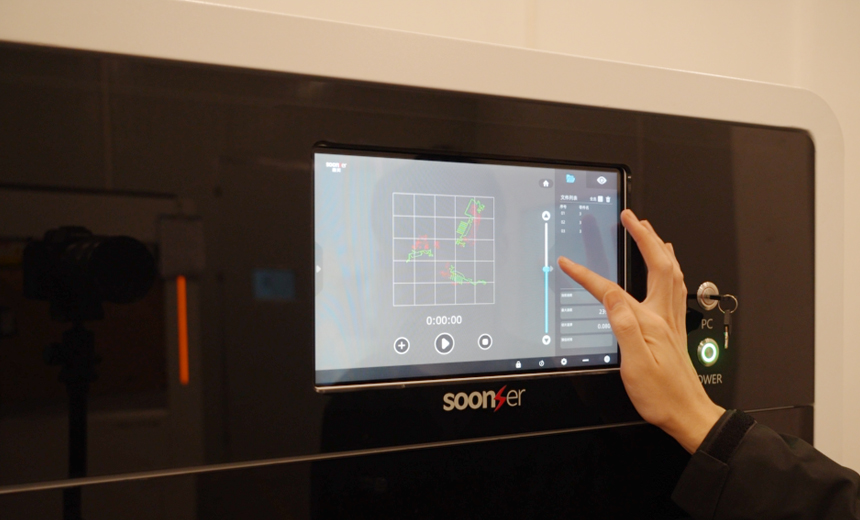

Automatic Guided Control System
The system is easy to use, features a fully guided print process, one-click preparation, power outage recovery, and automatic printing for efficient operation.
-
High StabilityThe printer features an integrated modularized design, a triaxial marble base board, an all-in-one frame structure and excellent optical instruments for enhanced stability and precision.
-
High Accuracy and Fine DetailsWith a print accuracy of 50μm and case study resolution (vertical: 0.25mm; horizontal: 0.27mm), the printer delivers exceptional detail and precision.
-
Intelligent and ConvenientThe printer includes an easy-to-install build plate, a replaceable resin tank, remote monitoring, and real-time laser detection for a seamless user experience.
-
Automatic Guided Control SystemThe system is easy to use, features a fully guided print process, one-click preparation, power outage recovery, and automatic printing for efficient operation.

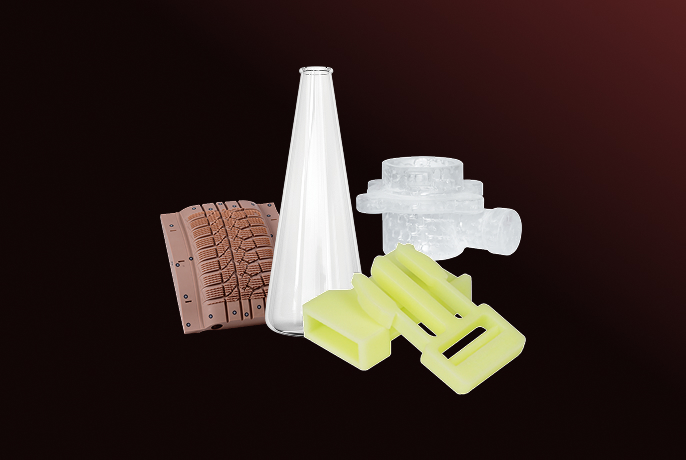

Product Applications
Unlock Innovation Without Compromise.
-
Investment CastingCreate detailed, transparent casting patterns quickly and cost-effectively. The SoonSer Smart SLA streamlines the casting process, reducing material waste and production time while enhancing pattern accuracy and surface quality.
-

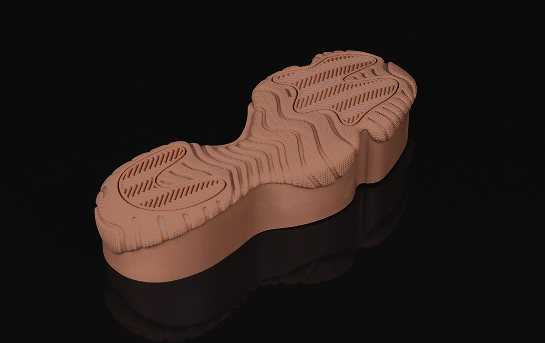

Shoe MoldProduce detailed shoe molds and prototypes with smooth surfaces and fine textures. Ideal for rapid iteration and customization in footwear design and manufacturing.
-

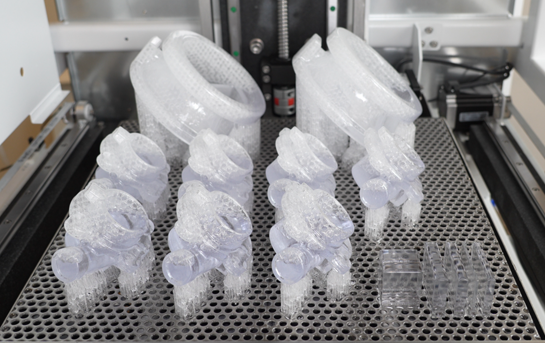

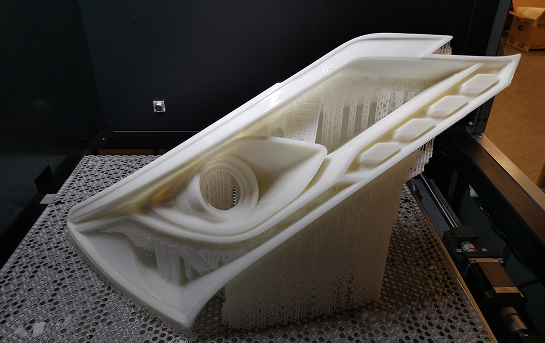

Automotive ComponentsManufacture lightweight, high-precision parts for testing and production, such as air ducts, housings and custom fixtures. SLA technology ensures tight tolerances and complex geometries.
-

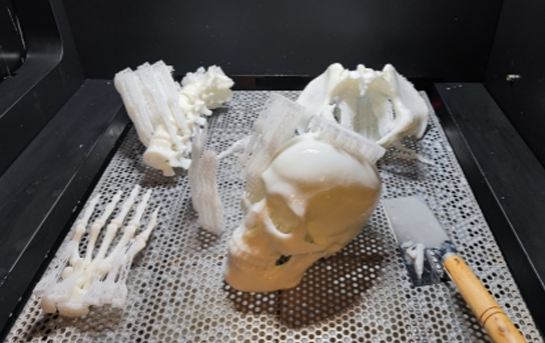

Medical Devices and Surgical ToolsFabricate precise surgical guides, dental models, and prosthetics with biocompatible resins. The Mars Pro Series ensures accuracy and consistency for critical healthcare solutions.
-

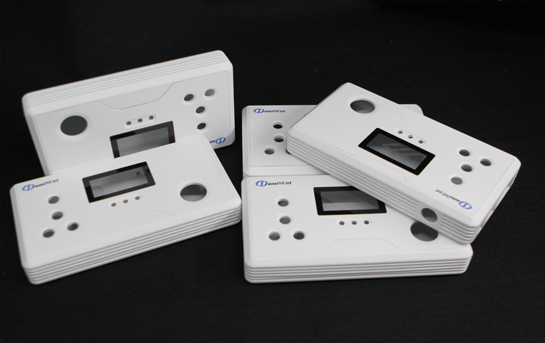

Consumer Electronics PrototypingRapidly prototype functional parts for consumer electronics, such as enclosures, connectors, and housings. The Mars Pro Series allows for precise, quick-turnaround prototypes, helping electronics manufacturers reduce development time and improve product designs.
SoonSer Smart Series Specification Comparison
-
Smart-300H

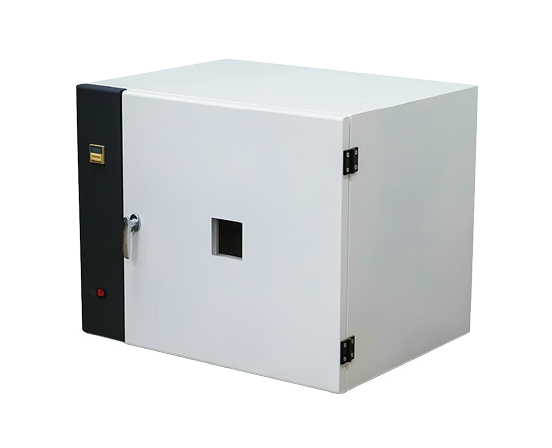

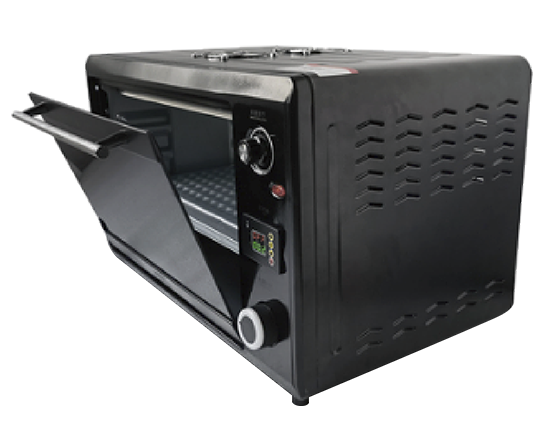

Smart-300HView Curing Box Specifications
-
Smart-400H
Smart-400HView Curing Box Specifications
-
Build Volume
-
Accuracy
-
Layer Thickness
-
Scanning Speed
-
Spot Mode
-
Spot Size
-
Operational Platform
-
Data Format
-
Main Configuration (Recommended)
-
Printer Size
-
Printer Weight
-
Power
-
Temperature
-
Humidity
-
Place
-
Smart-300HView Curing Box Specifications
-
Build Volume300x300x250mm
-
Accuracy±0.1mm (L<100mm); ±0.1%xL (L≥100mm)
-
Layer Thickness0.05 mm ~ 0.20 mm Opcional
-
Scanning Speed6-15m/s
-
Spot ModePunto fijo
-
Spot Size0.08mm
-
Operational PlatformPlataforma de mármol de tres ejes
-
Data Format*.stl/*.slc/*.cli
-
Main Configuration (Recommended)i5, CPU de 2,3 GHz, 8 GB de RAM, Windows® 7, versión superior
-
Printer Size800x980x1750mm(W x D x H)
-
Printer Weight350 kg (sin resina)
-
Power200-240 V CA, 50/60 Hz, monofásica, 2.5 kW
-
Temperature20-26℃
-
HumidityMenos del 40%
-
PlaceTerreno estable, plano, sin vibraciones.
-
-
Smart-400HView Curing Box Specifications
-
Build Volume400x400x300mm
-
Accuracy±0.1mm (L<100mm); ±0.1%xL (L≥100mm)
-
Layer Thickness0.05 mm ~ 0.20 mm Opcional
-
Scanning Speed6-15m/s
-
Spot ModePunto fijo
-
Spot Size0.08mm
-
Operational PlatformPlataforma de mármol de tres ejes
-
Data Format*.stl/*.slc/*.cli
-
Main Configuration (Recommended)i5, CPU de 2,3 GHz, 8 GB de RAM, Windows® 7, versión superior
-
Printer Size800x980x1750mm(W x D x H)
-
Printer Weight350 kg (sin resina)
-
Power200-240 V CA, 50/60 Hz, monofásica, 2.8 kW
-
Temperature20-26℃
-
HumidityMenos del 40%
-
PlaceTerreno estable, plano, sin vibraciones.
-
